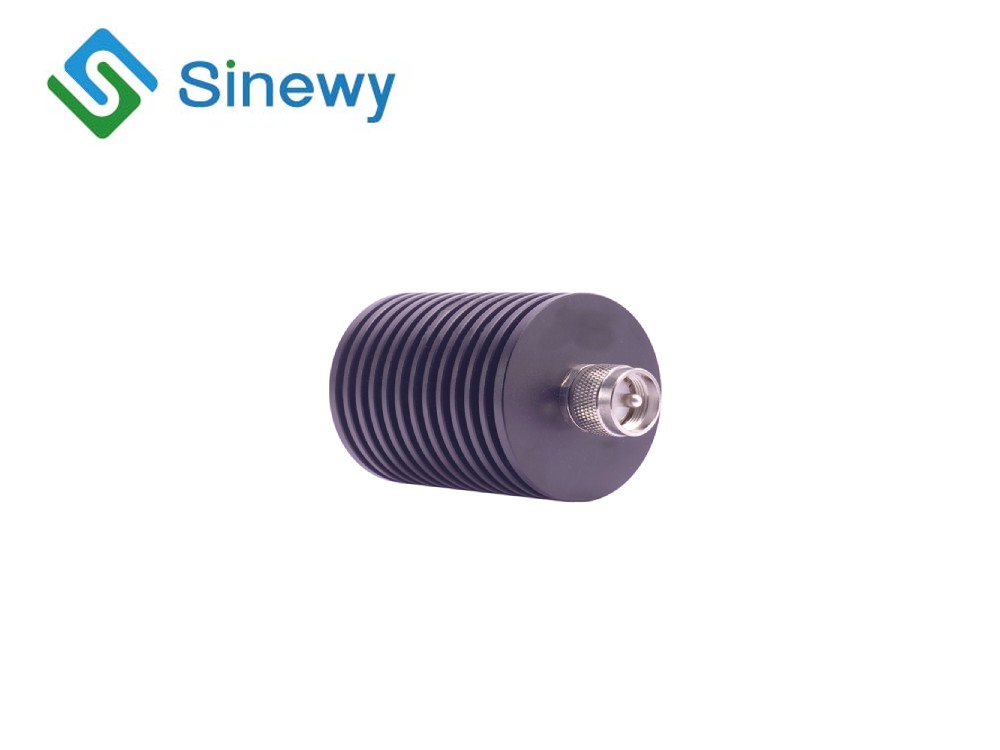

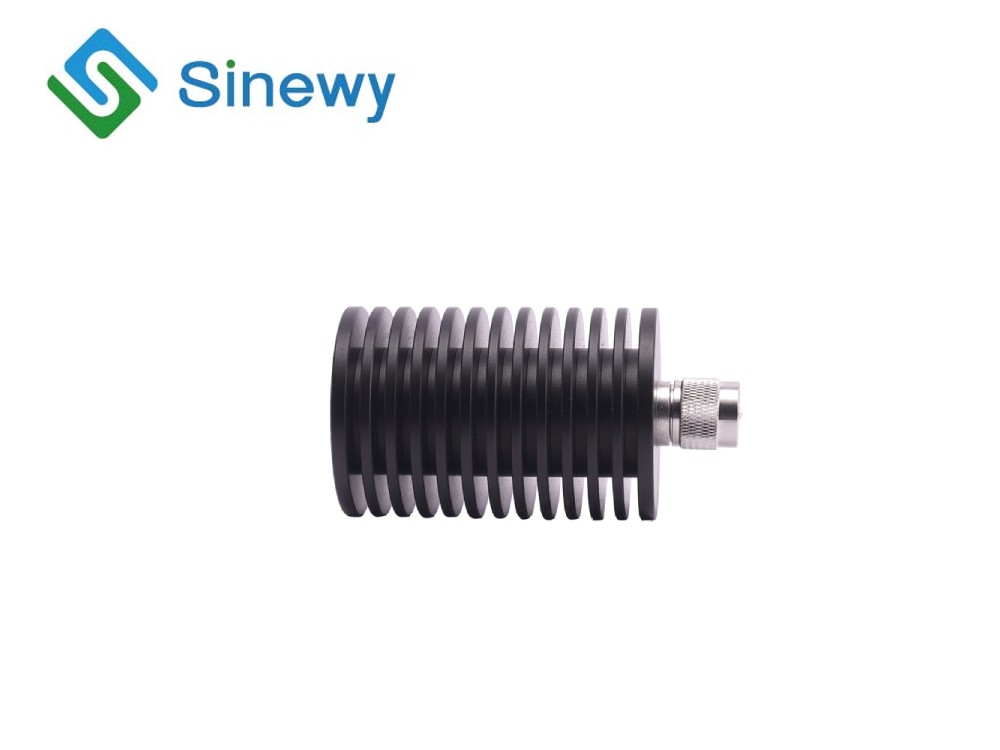

Product Name |
LOAD
|
FrequencyRange (MHz) |
DC-3000MHz
|
Return Loss(dB) |
≥19
|
VSWR(dB) |
≤ 1.25
|
PIM3(dBm) |
≤ -110 dBc (with 2 x 43dBm)
|
Maximum Input (W) |
100 W
|
Operating temperature(℃) |
-25℃ to +70℃
|
Relative humidity(℃) |
0 ~ 95 %
|
Impedance(Ω) |
50 Ω
|
Size(mm) |
110 x 80 x 50 mm
|
Weight(g) |
1500 g
|
Connector Type |
DIN-M
|
Ingress protection |
IP65
|
Color |
Black
|
ROHS |
Meet
|
