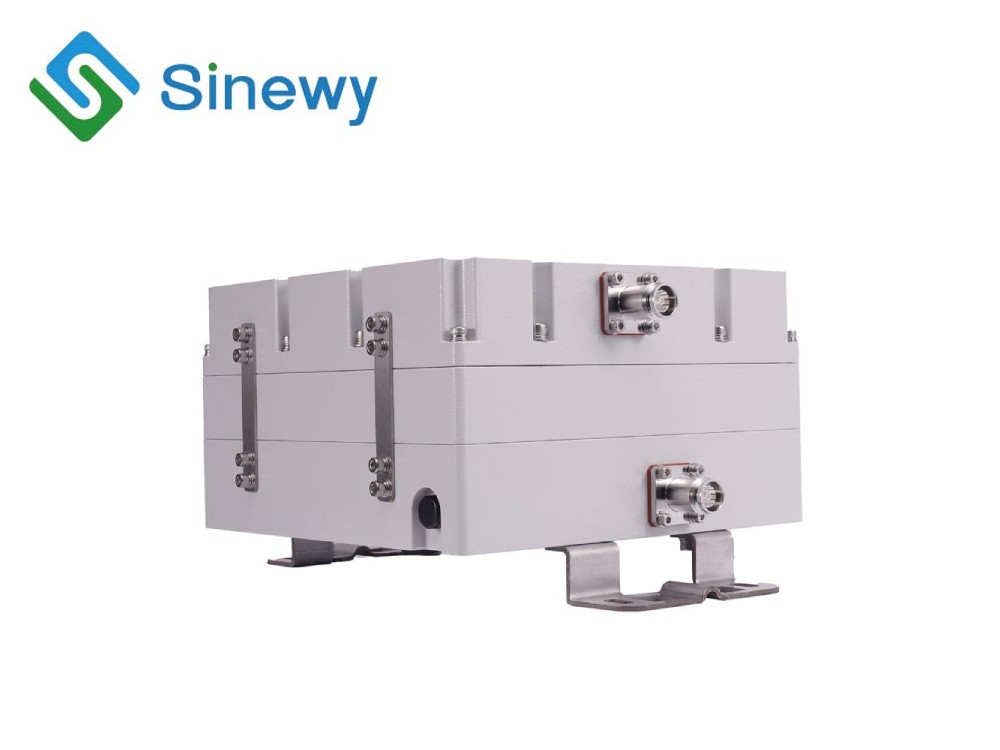

Downlink (TX) Path
|
700
|
900
|
|
Frequency Band
|
778 -803
|
940 - 950 MHz
|
|
Insertion Loss
|
0.5 dB
|
0.5 dB
|
|
Return Loss
|
≥ 18 dB
|
≥ 18 dB
|
|
Average input power
|
≥ 150 W
|
≥ 150 W
|
|
Peak input power
|
≥ 1.6 KW
|
≥ 1.6 KW
|
|
Intermodulation, 2x43 dBm TX Carrier BTS port
|
-117 dBm in RX band, ANT port
|
-117 dBm in RX band, ANT port
|
|
Uplink (RX) Path
|
|
Frequency Band
|
723 - 748
|
890 -905 MHz
|
|
Gain
|
12 dB nominal
|
12 dB nominal
|
|
Ripple(dB)
|
≤ 2
|
≤ 2
|
|
Return Loss
|
≥ 18 dB
|
≥ 18 dB
|
|
Noise Figure
|
2 dB
|
2 dB
|
|
Insertion Loss, Bypass mode
|
2 dB
|
2 dB
|
|
Return Loss, Bypass mode
|
≥ 18 dB
|
≥ 18 dB
|
|
Output IP3
|
>24 dBm
|
>24 dBm
|
|
Power Supply and Alarm
|
|
AISG - Mode
|
|
DC
|
|
24 V DC nominal (9-30 V DC)
|
|
Power
|
|
< 4 W
|
|
Alarm
|
|
3GPP/AISG 2.0
|
|
Environmental
|
|
Operating Temperature Range
|
-40 to +65°C | -40 to +149°F
|
|
Operation
|
ETS 300 019-1-4 Class 4.1E
|
|
Storage
|
ETS 300 019-1-1 Class 1.2
|
|
Ingress Protection
|
IP67
|
|
|
Lightning Protection
|
5 kA 8/20 µs (ANT, BTS)
|
| |
3 kA (RET port)
|
|
|
Miscellaneous
|
|
EMC
|
EN 301 489-50
|
|
|
Safety standards
|
IEC/EN 62368-1
|
|
|
MTBF
|
1 Mh/TMA min.
|
|
|

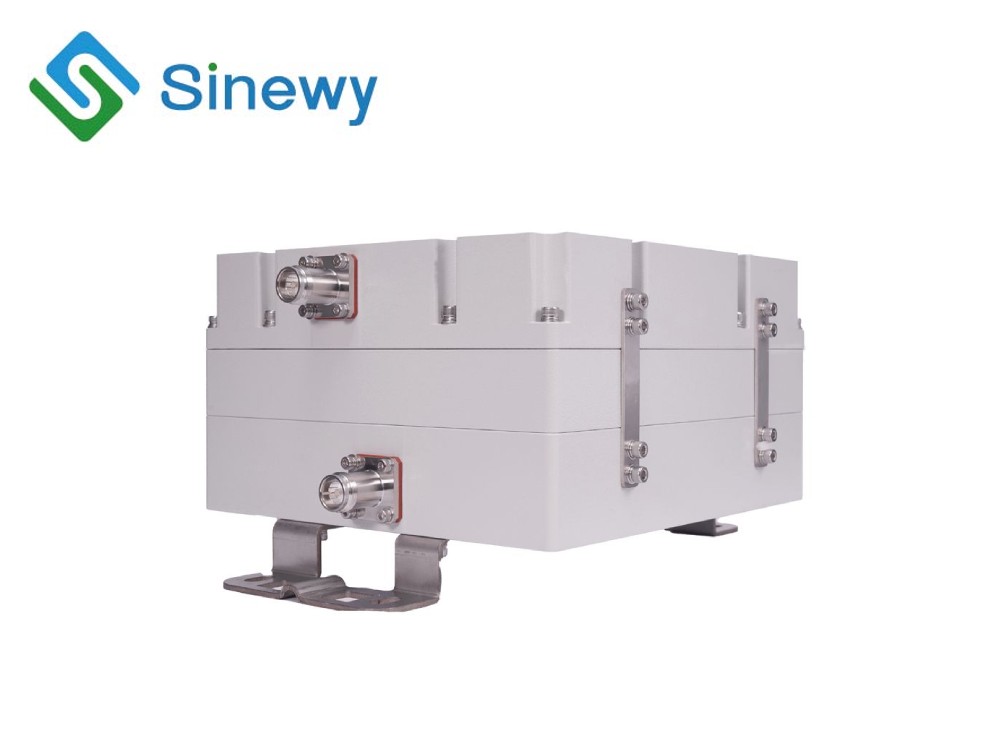

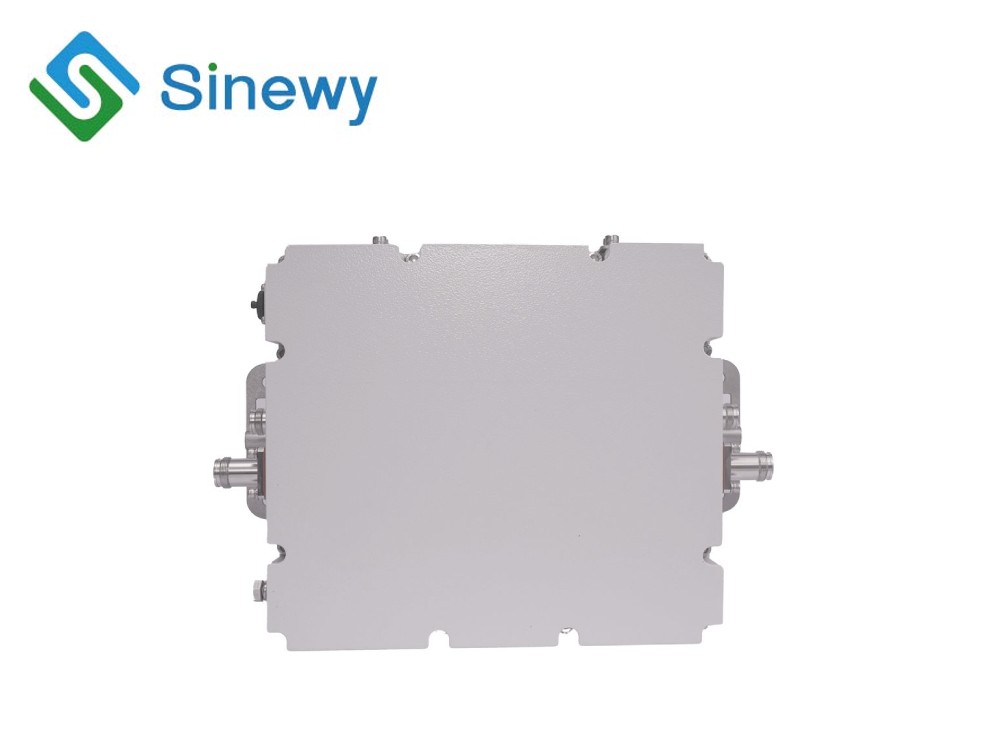

Mechanical
|
|
Dimensions (WxHxD)
|
245x265x147 mm | 9.65x10.43x5.79 in
|
|
Connectors
|
2x ANT, 2x BTS, AISG Female 8 pin circular
|
|
RF Connectors type
|
4.3-10(f)
|
|
Mounting (Supporter Pole Diameter: 40-140mm)
|
Hose clamps, arbitrary orientation
|
|
Volume
|
9.5 l
|
|
|
Weight gross/net
|
12.7 kg / 11.80 kg | 28.0 lb / 26.01 lb
|
|
Colour
|
NCS 1502-R
|
|
Bracket
|
Included
|
